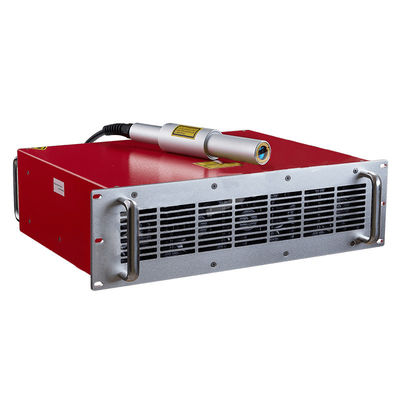

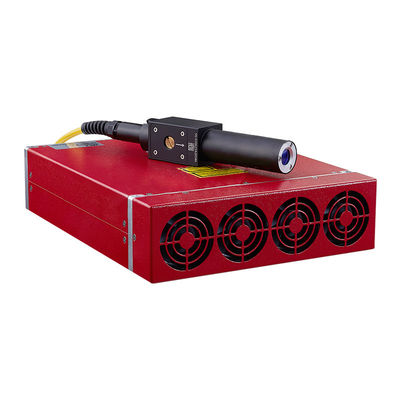

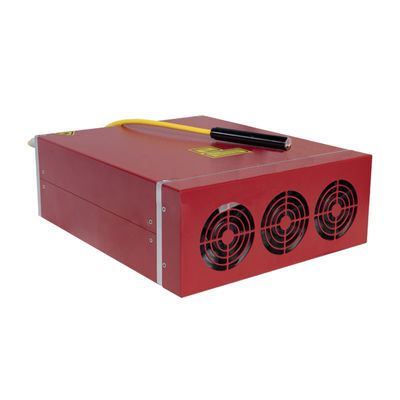

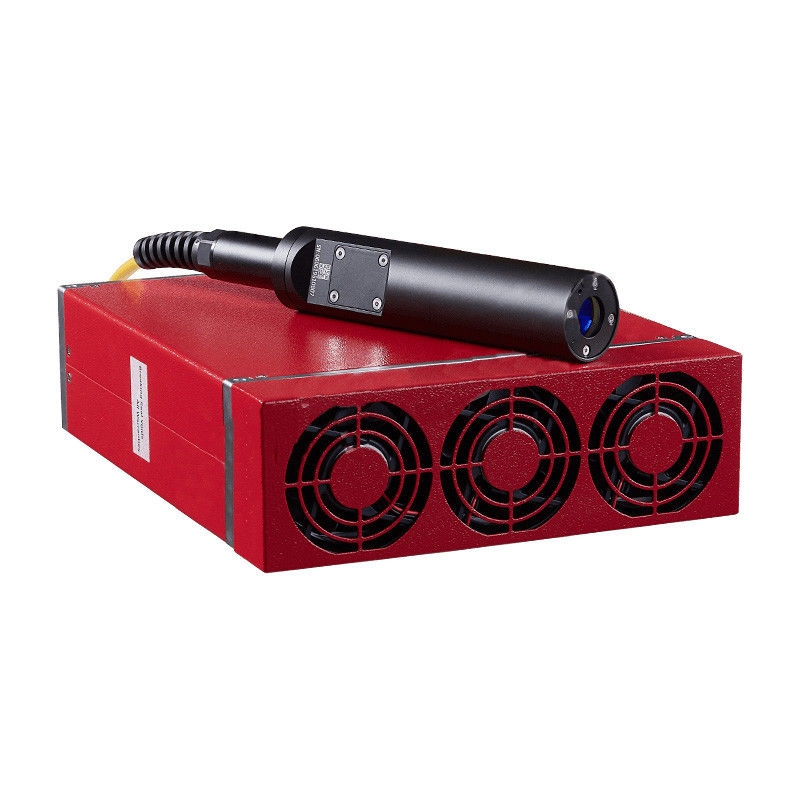

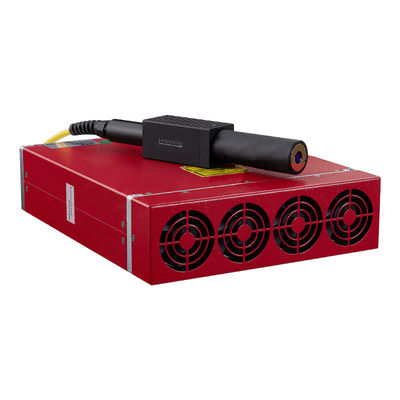

Ultrafast Lasers And Fiber Lasers High Power MOPA Fiber Lasers
Ultrafast Lasers And Fiber Lasers High Power MOPA Fiber Lasers Ultrafast Lasers And Fiber Lasers High Power MOPA Fiber Lasers Ultrafast Lasers And Fiber Lasers High Power MOPA Fiber Lasers Ultrafast Lasers And Fiber Lasers High Power MOPA Fiber Lasers Ultrafast Lasers And Fiber Lasers High Power MOPA Fiber Lasers

Large Image :  Ultrafast Lasers And Fiber Lasers High Power MOPA Fiber Lasers

Product Details:
Brand Name: Sintec Optronics
Model Number: STJ Series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

Ultrafast Lasers And Fiber Lasers High Power MOPA Fiber Lasers

Description
Highlight:

Lasers and Fiber Lasers

,

Fiber Lasers

,

MOPA Fiber Lasers

High Power MOPA Fiber Lasers(Master Oscillator Power Amplifier)



STJ-LP-Series MOPA Fiber Lasers

STJ-LP-Series Fiber Lasers adopts MOPA (Master Oscillator Power Amplifier) structure, diode laser as seed light, and fiber based power amplification. This laser integrates independence adjustment of pulse width and frequency, to make sure a constant pulse energy output, which provides a good combining solution to the requirements of high power laser source and high marking speed.

The extremely flexible pulse width and frequency adjustment, which plays a significant impact on colour formation, enables colour or silver shining marking on stainless steel.

Features:

  • Flexible & independent control of pulse width & frequency
  • Selectable pulse shape
  • High repetition frequency
  • No laser leakage

Applications:

  • Marking / Colour marking
  • Ablation
  • Cutting
  • Drilling
  • Scribing
  • Soldering
  • Trimming
  • Engraving

Technical specifications:

Model STJ-LP-20 STJ-LP-30 STJ-LP-60 STJ-LP-100
M2 <1.3 <1.8
Output cable length (m) 2 3
Average output power (W) >20 > 30 >60 >100
Maximum pulse energy (mJ) 0.8 1.2
Pulse repetition rate at Maximum power (kHz) 25~400 37 ~400 50~400 83~400
Pulse repetition rate (kHz) 1~400
Pulse width (ns) 200 250
Output power stability (%) <5
Cooling Air
Power supply (V) 24
Current (A) <8 < 10 <15 <20
Maximum power consumption (W) 120 140 300 450
Central wavelength (nm) 1064
Pulse width @3dB (ns) <15
Polarization Random
Resist of high reflection Yes
Beam diameter (mm) 7±0.5 6±0.5
Power range (%) 0~100
Operation temperature (°C) 0~40
Storage temperature (°C) -10~60
Weight (kg) 8 10 13.4
Size (mm) laser:315×220×103, isolator: 42.5x42.4x262.5 315×275×99 337×278×120

STJ-M7 Series MOPA Fiber Lasers

STJ-M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. These lasers are suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.

Application Advantages

  • Scribing, drilling
  • Surface treatment
  • Sheet metal cutting, welding
  • Marking on fly
  • Metal surface processing, peeling coating
Product number   STJ-M7-20-SR STJ-M7-30-SR
M2   <1.3 <1.3
Delivery Cable Length m 2 2
Nominal Average Output Power W >20 >30
Maximum Pulse Energy mJ 0.8 0.8
Pulse Repetition Rate Range kHz 1~4000 1 ~ 4000
Pulse Duration ns 2~350 2 ~ 350
Output Power Stability % <5 <5
Cooling Method   Air Air
Supply DC Voltage (VDC) V 24 0.8
Current Consumption A <5 <6
Environmental Supply Current A >5 >6
Power@20℃ W <120 <144
Central Emission Wavelength nm 1064 1064
Emission Bandwidth@3dB nm <15 <15
Polarization   Random Random
Output Beam Diameter mm 7±0.5 7±0.5
Output Power Tuning Range % 0~100 0 ~ 100
Operation Temperature ℃ 0 ~40 0 ~ 40
Storage Temperature ℃ -10~60 -10 ~ 60
Weight kg 4.4 4.5
Size(L×W×H) mm 245×200×65 245 × 200 × 65
Product Number   STJ-M7-60-L1-R STJ-M7-80-L1-R STJ-M7-100-L1-R STJ-M7-120-L1-R
M2   <1.8 <1.8 <1.8 <1.8
Delivery Cable Length m 3 3 3 3
Nominal Average Output Power W >60 >80 >100 >120
Maximum Pulse Energy mJ 1.5 2.0 1.5 1.5
Pulse Repetition Rate Range kHz 1 ~ 4000 1 ~ 4000 1 ~ 4000 1 ~ 4000
Pulse Duration ns 2~500 2~500 2~500 2~500
Output Power Stability % <5 <5 <5 <5
Cooling Method   Air Cooled Air Cooled Air Cooled Air Cooled
Supply DC Voltage (VDC) V 48 48 48 48
Current Consumption A <6 <7 <8 <9
Environmental Supply Current A >6 >7 >8 >9
Power@20℃ W <260 <300 <400 <450
Central Emission Wavelength nm 1064 1064 1064 1064
Emission Bandwidth@3dB nm <15 <15 <15 <15
Polarization   Random Random Random Random
Output Beam Diameter mm 7±0.5 7±0.5 7±0.5 7±0.5
Output Power Tuning Range % 0~100 0~100 0~100 0~100
Operation Temperature ℃ 0 ~40 0 ~40 0 ~40 0 ~40
Storage Temperature ℃ -10~60 -10~60 -10~60 -10~60
N.W KG 8.5 8.5 13.2 13.2
Size(L×W×H) mm 325 × 260 × 75 325 × 260 × 75 350 × 280 × 112 350 × 280 × 112
Product Number   STJ-M7-150-L1-R STJ-M7-200-L1-R
M2   <1.8 <1.8
Delivery Cable Length m 5 5
Nominal Average Output Power W >150 >200
Maximum Pulse Energy mJ 1.5 1.5
Pulse Repetition Rate Range kHz 1~4000 1~4000
Pulse Duration ns 4 ~ 500 8 ~ 500
Output Power Stability %　 <5 <5
Cooling Method   Air Cooled Air Cooled
Supply DC Voltage (VDC) V 48 48
Current Consumption A <12 <16
Environmental Supply Current A >12 >16
Power@20℃ W <600 <800
Central Emission Wavelength nm 1064 1064
Emission Bandwidth@3dB nm <20 <20
Polarization   Random Random
Output Beam Diameter mm 7±0.5 7±0.5
Output Power Tuning Range % 0~100 0~100
Operation Temperature ℃ 0 ~ 40 0 ~ 40
Storage Temperature ℃ -10~60 -10~60
N.W KG 24.8 24.8
Size(L×W×H) mm 430×351×133 430×351×133
