1030nm, 515nm, 343nm Pico-second Fiber Lasers

1. PSY Series Pico-second 1030nm Fiber Lasers

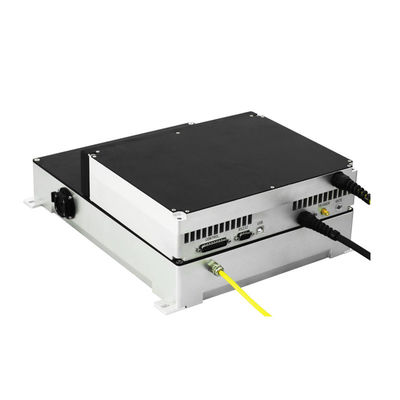

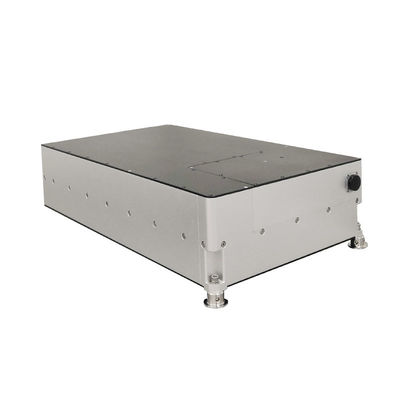

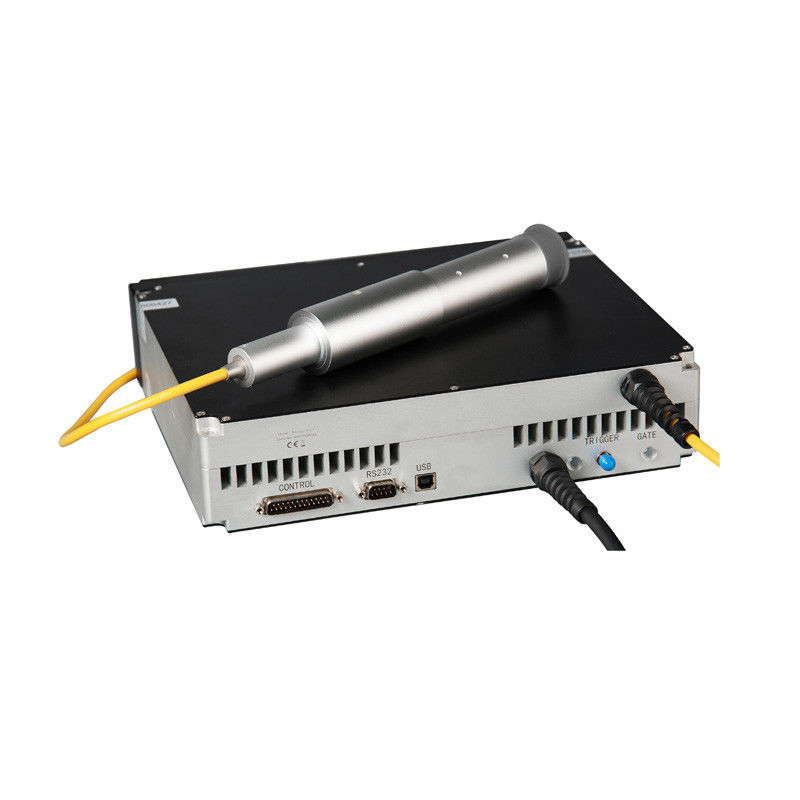

Our PSY series pico-second 1030nm fiber lasers have a tunable pulse duration from 50 ps to 800ps, repetition rates from 25 kHz up to 5 MHz and over 100W average power. The short pulse duration, high repetition rates combined with over 1MW peak power open up a variety of micromachining applications such as PERC solar cell dicing, glass drilling, sapphire drilling, Li-Ion battery foil cutting, resistor trimming and marking of transparent material. The laser is completely controlled via an industry standard digital interface with optional DB25 or RS-232.

Features

• Average Power 100W

• Pulse Duration 50-800ps

• Peak Power 1MW

• Repetition Rate 25kHz-5MHz

• Pulse Energy 300uJ@800ps

• M²<1.3

• Burst Mode Function

Applications

• PERC Solar Cell Dicing

• Lion Ion Battery Foil Cutting

• Glass Drilling

• Silicon or SiC Dicing

• Metal Marking

• Chrome Vanadium Texturing

• Micromaching of Transparent materials

2. PSY Series Pico-second 515nm & 343nnm Fiber Lasers

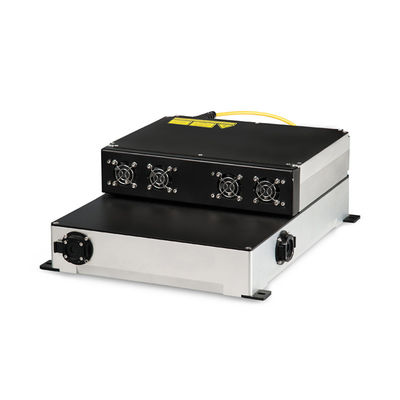

The PSY series green and UV lasers have the features of short pulse duration, high repetition rates and high peak power, which results in a variety of micromachining applications such as PERC solar cell dicing & stripping, FPC/PCB cutting, glass drilling, sapphire drilling, silicone ablating, Li-Ion battery foil cutting, resistor trimming and marking of transparent material. The laser is completely controlled via an industry standard digital interface with optional DB25 or RS-232.
