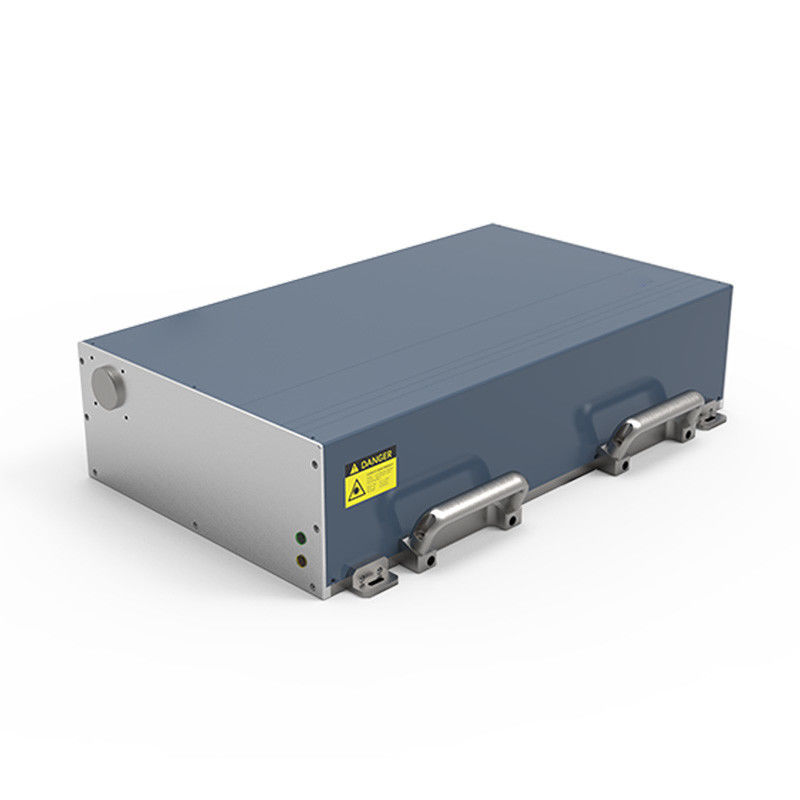

Picosecond Ultra Fast Lasers 1064nm , 532nm , 355nm High Energy Pulses

Picosecond Ultra Fast Lasers 1064nm , 532nm , 355nm High Energy Pulses
Picosecond Ultra Fast Lasers 1064nm , 532nm , 355nm High Energy Pulses Picosecond Ultra Fast Lasers 1064nm , 532nm , 355nm High Energy Pulses Picosecond Ultra Fast Lasers 1064nm , 532nm , 355nm High Energy Pulses Picosecond Ultra Fast Lasers 1064nm , 532nm , 355nm High Energy Pulses Picosecond Ultra Fast Lasers 1064nm , 532nm , 355nm High Energy Pulses

Large Image :  Picosecond Ultra Fast Lasers 1064nm , 532nm , 355nm High Energy Pulses

Product Details:
Brand Name: Sintec Optronics
Model Number: PSH series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

Picosecond Ultra Fast Lasers 1064nm , 532nm , 355nm High Energy Pulses

Description
Highlight:

Picosecond Ultra Fast Lasers

,

Ultra Fast Lasers

,

Lasers and Fiber Lasers

1064nm , 532nm ,355nm High Energy Pulses Pico-second Ultra-fast Lasers



1. PSH Series Pico-second 1064nm Lasers

Our PSH series picosecond ultra-fast lasers are robust and affordable. They produce high energy pulses with durations below 10ps. The laser is based on a hybrid optical amplifier architecture that combines the advantages of fiber laser technology with solid state diode pumped multi-pass amplifiers. Compact and water-cooled, this laser is low maintenance and never needs realignment. Special specification can be customized, Our laser is ideal for fast, high precision material processing at an affordable price.

  • <10 picosecond pulses

  • Long term power stability<3%rms

  • High beam quality with M2≤1.3

  • Serial Interface

These lasers are widely used in micro-machining, ceramic processing, glass cutting, medical plastic processing, sapphire processing, steel processing, laser deposition, thin film patterning, hard materials machining and so on.

Part Number PSH-1064-20 PSH-1064-30A PSH-1064-30B PSH-1064-50
Wavelength 1064nm 1064nm 1064nm 1064nm
Output Power >20W@500kHz >30W@500kHz

>17.5W@50kHz

(3 pulses)

 >50W@500kHz
Max. Pulse Energy >100uJ@100kHz >100uJ@200kHz

>350uJ@50kHz

(3 pulses)

 >300uJ@100kHz
Repetition Rates 100kHz-1MHz 200kHz-1MHz 50kHz-100kHz 100kHz-1MHz
Pulse Width <10ps <10ps <10ps <10ps
Power Stability ≤1% rms ≤1% rms ≤1% rms ≤3% rms
Peak-to-peak Stability ≤2%rms ≤2%rms ≤2% rms ≤2%rms
Spatial Mode TEM00 (M2£1.3) TEM00 (M2£1.3) TEM00 (M2£1.3) TEM00 (M2£1.3)
Beam Diameter ≤2.4mm±0.2mm ≤2.4mm±0.2mm ≤2.4mm±0.2mm ≤3mm±0.5mm
Beam Divergence ≤1.5mrad ≤1.5mrad ≤1.5mrad ≤3mrad
Beam Roundness ≥90% ≥90% ≥90% ≥90%
Polarization Ratio Horizontal, >100:1 Vertical, >100:1 Vertical >100:1 Horizontal, >100:1
Warm-up Time <30min <30min <30min <30min
Ambient Temperature 150-35℃ 150-35℃ 15-35℃ 10-35℃
Humidity <65% <65% <65% <65%
Cooling Water Water Water Water
Voltage 100-240VAC,50/60Hz 100-240VAC,50/60Hz 100-240VAC,50/60Hz 100-240VAC,50/60Hz
Power Consumption 1200W 1200W 1200W 1200W
Classification Class 4 Class 4 Class 4 Class 4
Laser Head Size 745x306x186 mm3 856×466×186mm3 856×466×186mm3 840×466×186mm3
Power Supply Model P-1200B0 P-1200B0 P-1200B0 P-1200B0
Power Supply Size 484×412×88mm3 484×412×88mm3 484×412×88mm3 484×412×88 mm3

2. PSH Series Pico-second 532nm & 355nm Lasers

Part Number PSH-355-10 PSH-532-15 PSH-532-30
Wavelength 355nm 532nm 532nm
Output Power >10W@1MHz >15W@500kHz >30W@1MHz
Max. Pulse Energy >10uJ@1MHz >30uJ@500kHz >30uJ@1MHz
Repetition Rates 400kHz-1MHz 400kHz-1MHz 1MHz-2MHz
Pulse Width <10ps <10ps <10ps
Power Stability ≤1% rms ≤1% rms ≤3% rms
Peak-to-peak Stability ≤2% rms ≤2%rms ≤2%rms
Spatial Mode TEM00 (M2£1.3) TEM00 (M2£1.3) TEM00 (M2£1.3)
Beam Diameter ≤1.5mm±0.2mm ≤1.5mm±0.2mm ≤1.5mm±0.5mm
Beam Divergence ≤2mrad ≤2mrad ≤3mrad
Beam Roundness ≥85% ≥85% ≥85%
Polarization Ratio Horizontal >100:1 Horizontal, >100:1 Horizontal, >100:1
Warm-up Time <30min <30min <30min
Ambient Temperature 15-35℃ 150-35℃ 10-35℃
Humidity <65% <65% <65%
Cooling Water Water Water
Voltage 100-240VAC,50/60Hz 100-240VAC,50/60Hz 100-240VAC,50/60Hz
Power Consumption 1200W 1200W 1200W
Classification Class 4 Class 4 Class 4
Laser Head Size 1016×466×195 mm3 1016×466×186 mm3 1000×466×186 mm3
Power Supply Model P-1200B0 P-1200B0 P-1200B0
Power Supply Size 484×412×88mm3 484×412×88mm3

484×412×88 mm3
