Diode Pumped High Frequency Pico-second Lasers 1064nm 532nm

Description
Highlight:

Diode Pumped Pico-Second Laser

,

Pico-Second Laser

,

Lasers

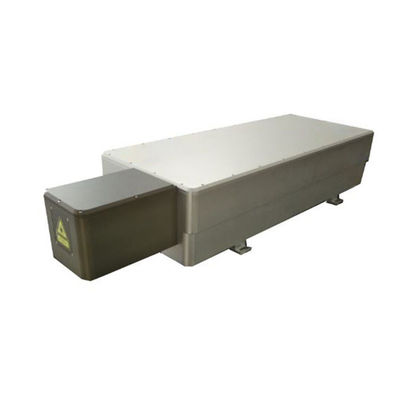

1064nm,532nm Diode-pumped High-frequency Pico-second Lasers



The diode pumped pico-second lasers is a laser with pulse width<15ps, pulse repetition rate 10-100kHz, beam quality factor M2 <1.2. The laser is the first choice for sapphire cutting , LED etching, remote rangefinding, physics & chemistry, material science, photonics.

Features

  • Electrically-controlled laser wavelength conversion

  • Adjustable high-frequency

  • Multi-stage amplifiers

Specifications:

Model PSZ-1064-10, PSZ-532-6 PSZ-1064-30, PSZ-532-18
Wavelength 1064nm/532nm (electrically switching) 1064nm/532nm (electrically switching
Average power 10W@1064nm; 6W@532nm 30W@1064nm; 18W@532nm
Pulse repetition rate 10-100kHz 10-100kHz
Power stability <0.5% <0.5%
Pulse width <15ps <15ps
Polarization Horizontal Horizontal
Beam quality M2 <1.2 <1.2
Beam mode TEM00 TEM00
Cooling Water Water
Pumping Diode pumping Diode pumping
Dimension (laser head) 1158x352x212mm 1358x452x212mm
Model PSZ-1064-2, PSZ-532-1
Wavelength 1064nm/532nm (2 exits, electrically switching)
Pulse energy ³2mJ@1064nm; ³1mJ@532nm
Power stability <3%
Pulse repetition rate 2kHz
Pulse width <15ps
Polarization Horizontal
Beam divergence <0.5mrad
Beam diameter <2mm
Beam mode TEM00
Cooling Water
Pumping Diode pumping
Power input 220VAC/25A/50Hz
Dimension (laser head) 481x314x125mm
Weight (laser head) <15kg

The above lasers are typical lasers and please contact us to discuss your requirements if you have any specific demands. We can customize the lasers according to your needs.
