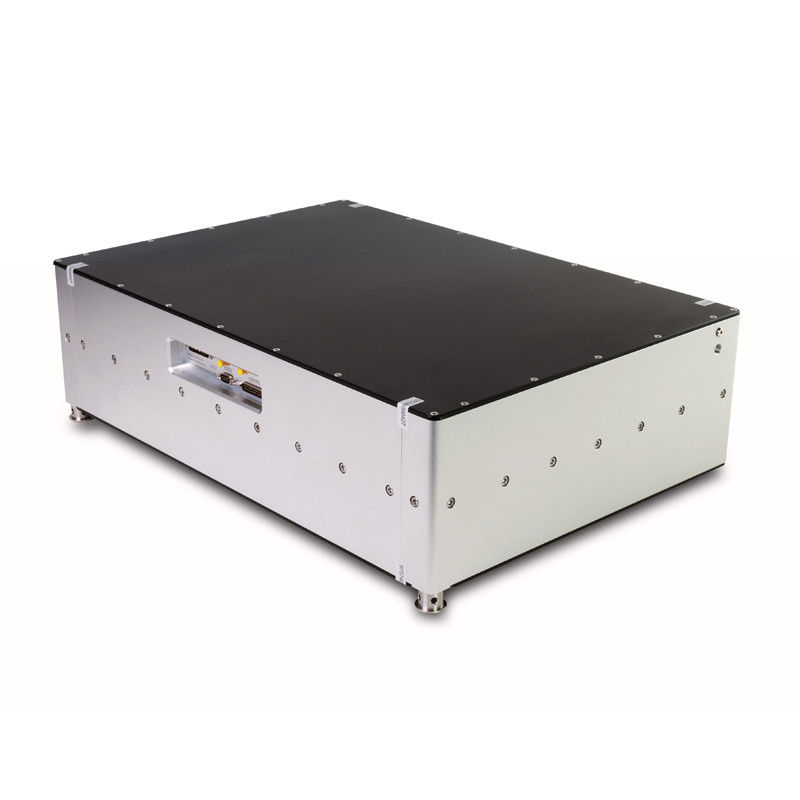

1035nm 6W - 100W High Power Femtosecond Fiber Lasers All Fiber Design

1035nm 6W - 100W High Power Femtosecond Fiber Lasers All Fiber Design
1035nm 6W - 100W High Power Femtosecond Fiber Lasers All Fiber Design 1035nm 6W - 100W High Power Femtosecond Fiber Lasers All Fiber Design 1035nm 6W - 100W High Power Femtosecond Fiber Lasers All Fiber Design 1035nm 6W - 100W High Power Femtosecond Fiber Lasers All Fiber Design 1035nm 6W - 100W High Power Femtosecond Fiber Lasers All Fiber Design

Large Image :  1035nm 6W - 100W High Power Femtosecond Fiber Lasers All Fiber Design

Product Details:
Brand Name: Sintec Optronics
Model Number: FSY series
Payment & Shipping Terms:
Delivery Time: Stock
Payment Terms: T/T via bank
Contact Now

1035nm 6W - 100W High Power Femtosecond Fiber Lasers All Fiber Design

Description
Highlight:

Femtosecond Fiber Lasers

,

Fiber Lasers

,

Lasers and Fiber Lasers

1035nm, 6-100W, High Power All-fiber Design Femtosecond Fiber Lasers



FSY series femtosecond fiber lasers have been widely used in the material micro-processing field. Our femtosecond fiber lasers offer >80W average power, >5MHz repetition rate with the pulse energy upto 100µJ.

Model FSY-1035-6 FSY-1035-10 FSY-1035-20 FSY-1035-50 FSY-1035-100
Center Wavelength 1035nm 1035nm 1035nm 1035nm 1035nm
Total power >6W >10W >20W >50W >100W
Repetition rate 80MHz 1Hz - 5MHz 1Hz - 5MHz 1Hz - 5MHz 1Hz - 5MHz
Power stability <1% <1% <1% <1% <1%
Pulse energy   >10µJ >40µJ >100µJ >200µJ
Number of burst pulse   1 ~10 1 ~10 1 ~10 1 ~10
Burst pulse combinatintion energy   >100µJ >120µJ >300µJ >400µJ
Pulse width 150fs 400fs - 6ps 400fs - 8ps 400fs - 8ps 400fs - 8ps
Beam diameter 3mm 3mm 3mm 3mm 3mm
Beam pergence <1mrad <2mrad <2mrad <2mrad <2mrad
Polarization Linear Linear Linear Linear Linear
Sync (trigger) output SMA TTL pulse SMA TTL pulse SMA TTL pulse SMA TTL pulse SMA TTL pulse
Power supply

AC 100V - 240V, 50/60Hz,

Rated output＞960W

AC 100V - 240V, 50/60Hz,

Rated output＞960W

AC 100V - 240V, 50/60Hz,

Rated output＞960W

AC 100V - 240V, 50/60Hz,

Rated output＞960W

AC 100V - 240V,

50/60Hz,

Rated output＞960W
Dimensions (L*W*H) 680*480*212mm 680*480*212mm 680*480*212mm 1200*410*141mm 1200*410*141mm
Control RS232 or DB25 RS232 or DB25 RS232 or DB25 RS232 or DB25 RS232 or DB25

Tag:

Fiber Lasers,

Diode Pumped Lasers,

Lasers
